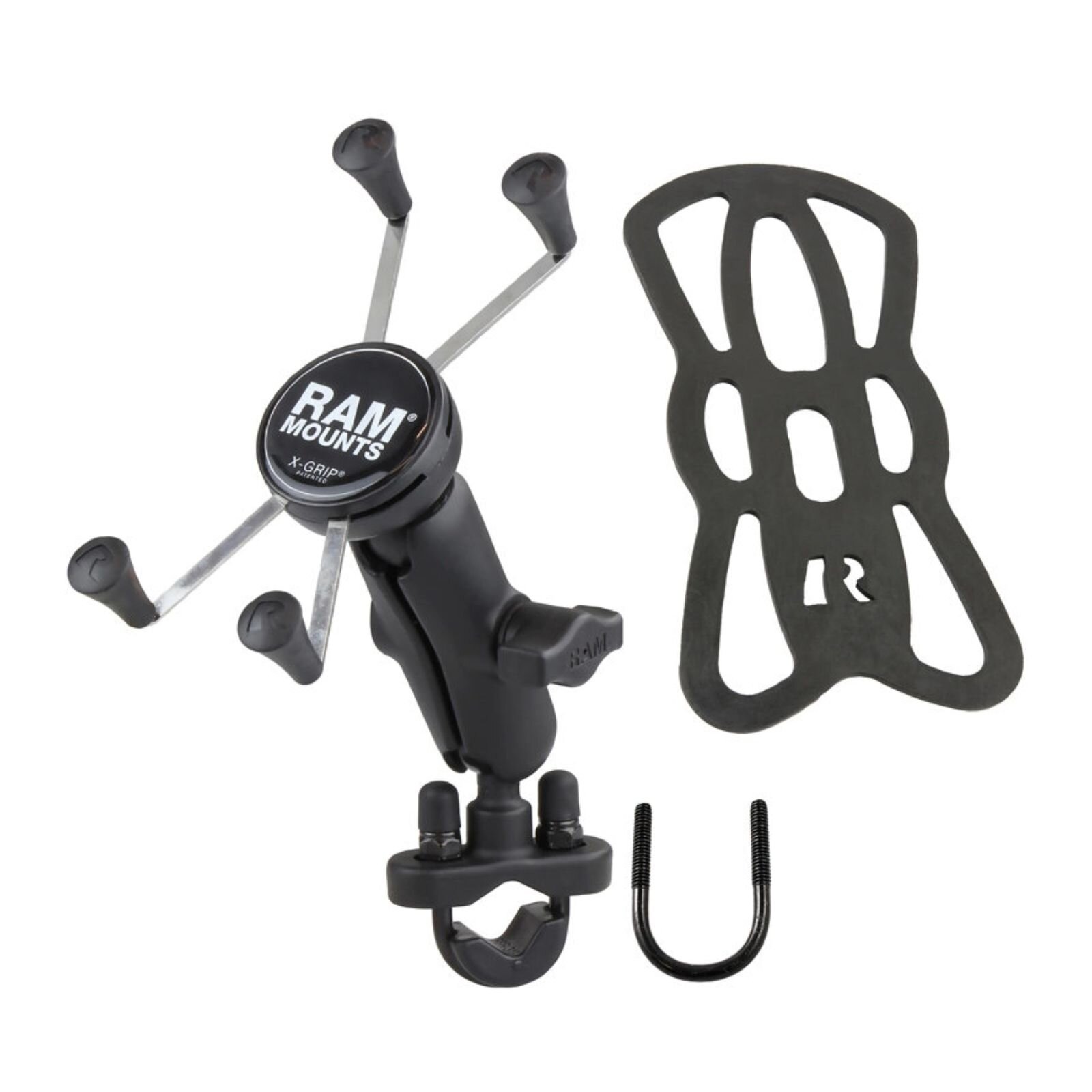

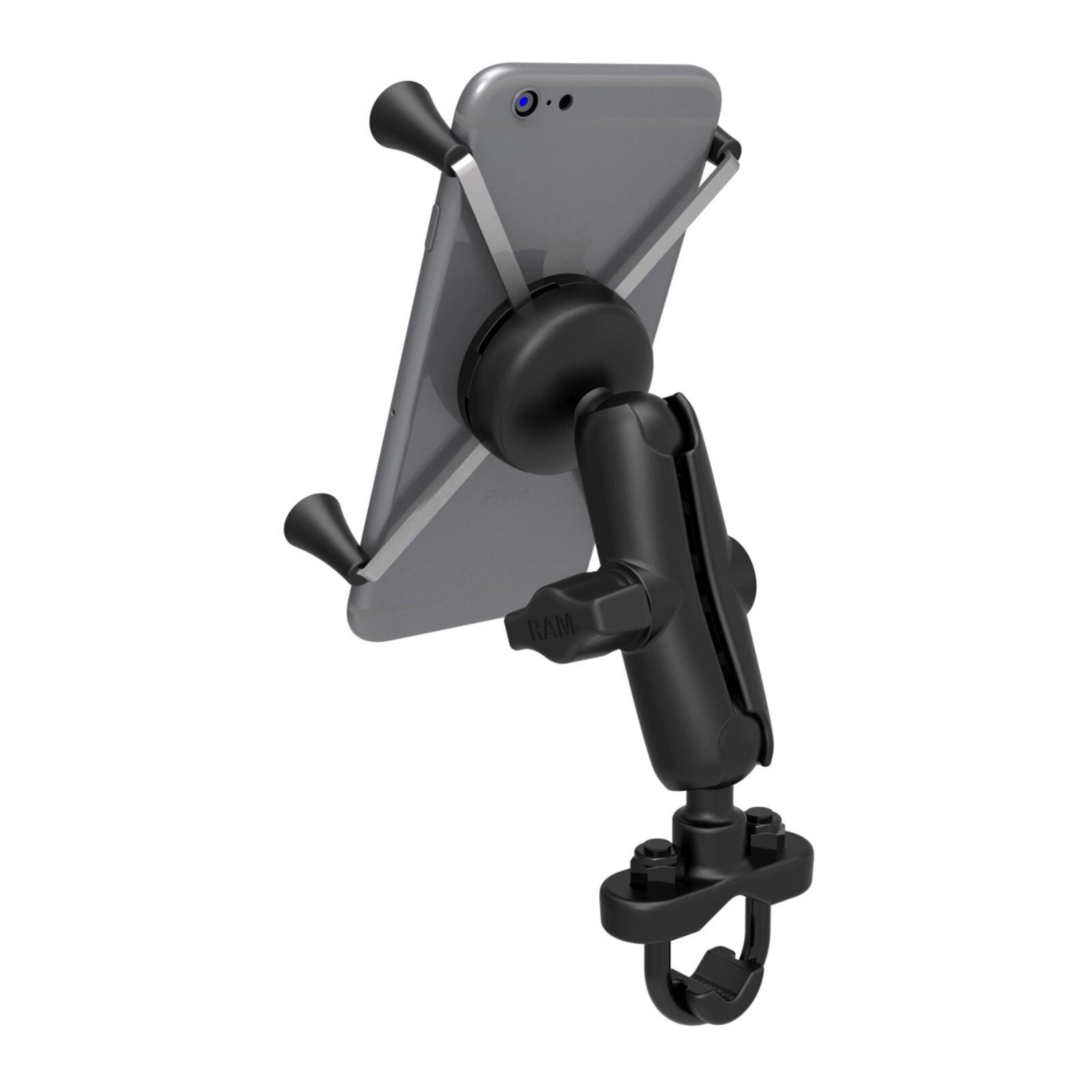

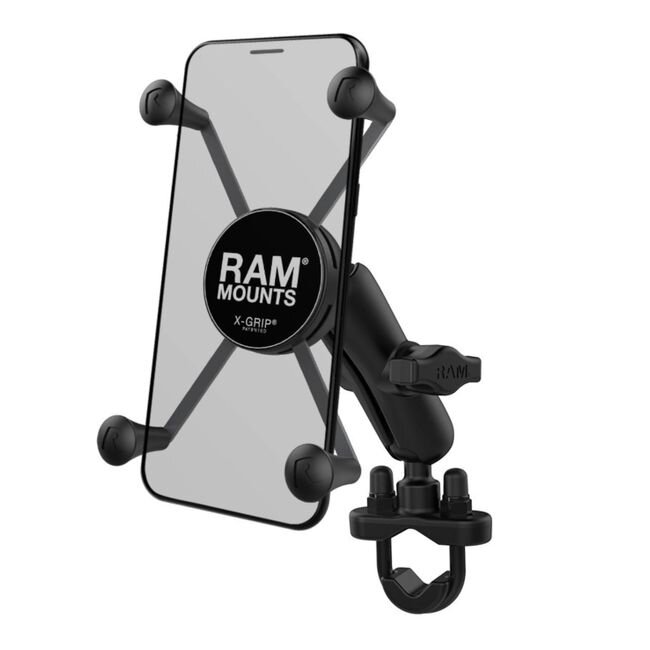

RAM X-GRIP LARGE PHONE MOUNT WITH HANDLEBAR U-BOLT BASE

Ideal for handlebars, the RAM-B-149Z-UN10U consists of a zinc-coated U-bolt base, medium length double socket arm, and the popular spring-loaded RAM® X-Grip® large phone holder.


In addition, hardware is included to accommodate rails from 0.5" - 1.25" in diameter. The RAM® X-Grip® features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite, this large version of the RAM® X-Grip® fits phones ranging from 1.75" to 4.5" in width and keeps your device completely functional and accessible. RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock and vibration damping. For outdoor applications, the RAM® X-Grip® includes a device tether that is recommended for added security and peace of mind.

Features:

Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
Includes a U-bolt base that accommodates rails from 0.5" to 1.25" in diameter and a medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
Specifications:

CLAMP RANGE: 0.5" (12.7mm) - 1.25" (31.7mm) diameter
HOLDER DIMENSIONS: Width Range: 1.75" (44.4mm) - 4.5"(114.3mm), Depth Range: 0.875" (22.2mm) max
SOCKET-TO-SOCKET LENGTH: 3" (76.2mm)
BALL SIZE: B Size (1", 25.4mm)
Assembly Hardware Included:

x1 Optional Tether
x1 Glue Tube for Rubber Caps
x1 1/4"-20 U-Bolt for .5" - 1" Rails
x1 1/4"-20 U-Bolt for 1" - 1.25" Rails
x2 1/4"-20 Nylock Nuts
x2 Rubber Caps
x1 U-Bolt Spacer
